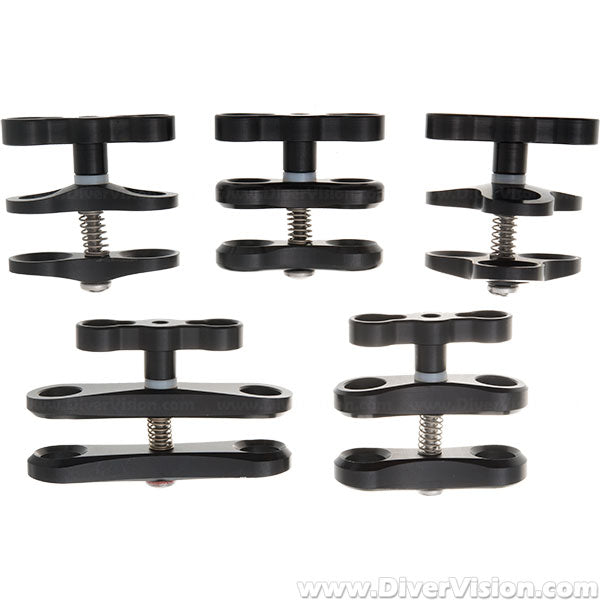

Ultralight AD-CS Clamp

• The AC-CSF clamp was the first to be designed using the standard knob you see today.
• It has 30 degrees of side-to-side movement and measures 1 1/2" between the centers of both ball mounting holes.
• It uses a 1/4"-20 coarse threaded stainless 316 bolt and works with any 1" ball.
• Knobs come in selected colors, black is Type III anodizing and color is Type II.
• Made out of 6061 T6 aircraft-grade aluminum.
• Will work in the harshest of environments, time-proven and built to last.

The clamps are what hold the ball ends together. They function much as your own arm joints function. Our system is designed for three clamps per arm side. This gives you the greatest flexibility of movement, i.e. you have a joint at your wrist, your elbow, and your shoulder. A regular or new style clamp holds two ball ends together, a triple clamp holds three ball ends together. When assembling your arms and clamps, place the ball ends in between the identical parts of the clamp and use the T-knob to tighten or loosen. It is easy to accidently put the ball end between a clamp half and the T-knob. With our clamps you do not need to tighten them so tight that you have trouble loosening them underwater. The o-ring in the balls allows you to tighten the clamps much looser than other manufacturers clamps and the strobe will still be held in the position you want it in. Never put only one balls into a clamp as the bolt will bend.
