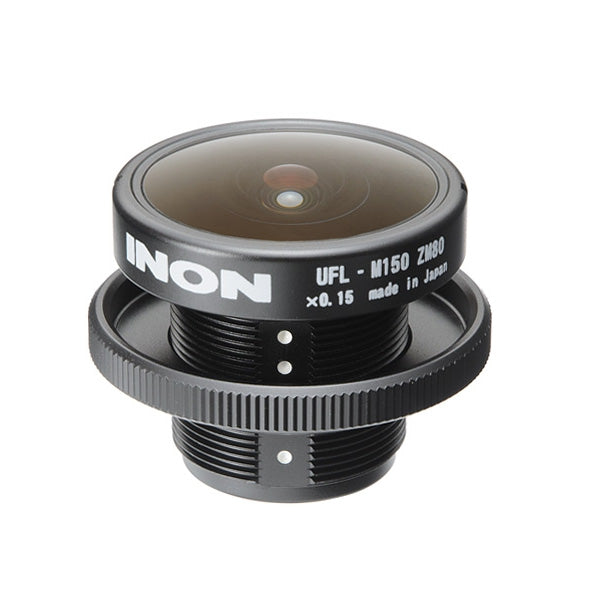

- INON UFL-M150 ZM80 Underwater Micro Fisheye Lens INON UFL-M150 ZM80 Underwater Micro Fisheye Lens
- Description
- Specifications
Compatible Mount:

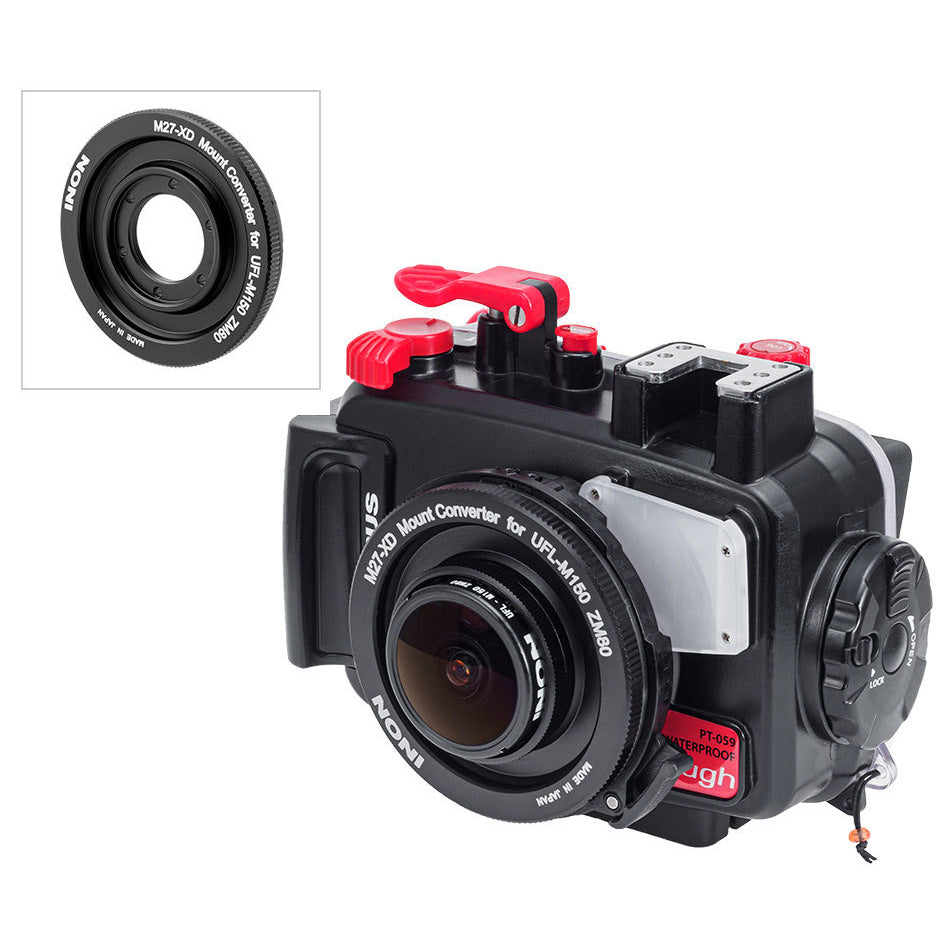

- M27-XD Mount Converter for UFL-M150 ZM80 (for XD Mount)
- M27-M67 Mount Converter for UFL-M150 ZM80 (for M67 Mount)
- M27-AD Mount Converter for UFL-M150 ZM80 (for 28AD Mount)
- M27-LD Mount Converter for UFL-M150 ZM80 (for 28LD Mount)
Compact fisheye lens to shoot through eyes of small marine life, so-called insect-eye lens imaging. The lens is designed to use at approx. 80mm zoom position (35mm film equivalent) not as like standard wide conversion lens.(*5)
(*5) This lens is designed for underwater use only. Using on land will not form an image.
Underwater view angle is 150°. The subject side lens is compact diameter 32.9mm and minimum focal length is 0cm to capture a tiny subject in entire image together with background.
The UFL-M150 ZM80 is an afocal system conversion lens which does not affect brightness of combined master lens and enables you to use benefit of camera's AF (auto focus).
You can take full advantage of INON "S-TTL" Auto exposure of INON Z-330, D-200, S-2000 to benefit appropriate exposure images simply by pressing shutter release button.
The lens barrel has threaded wall to adjust lens position back and forth to accommodate with different master lenses among many compact digital cameras (*6).
(*6) Not usable for a compact digital camera carrying large master lens or super zoom function, or an interchangeable lens for a SLR camera system.

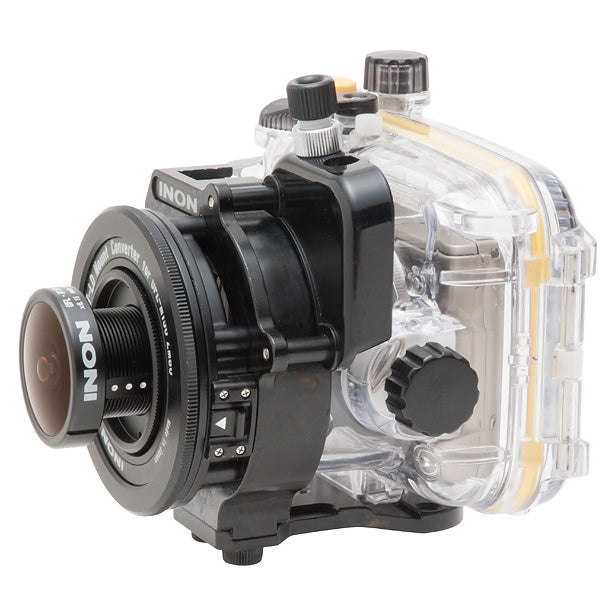

The UFL-M150 ZM80 is attached on compatible camera housing via combination of "Mount Base" which is exclusively designed for each housing and appropriate Mount Converter.
Model | UFL-M150 ZM80 |
Outer diameter / Length (*2) | 39.7mm / 36.8mm (1.6in / 1.4in) |
Weight (air / underwater) | 66g / approx.41g (2.3oz / 1.4oz) |
Lens construction | 5 elements in 4 groups |
Focal length (air / underwater) | - / infinity (afocal system) |
Magnification | 0.15 |
Maximum incident view angle (air / underwater) (*3) | - / 150° |
Body material / Finishing | Corrosion-resistant aluminum alloy / Rigid black almite |
Glass material / Finishing | Optical glass / Both side anti-reflection coating |
Mount thread diameter / pitch | M27 / 1.0 |
Depth rating | 60m / 197ft |
