- INON LED Flashlight LF1100h-EWf / LF1300-EWf INON LED Flashlight LF1100h-EWf / LF1300-EWf
- Description
- Specifications
- Item Included
Shutter-Linked Auto Off Function
Extra Wide Beam Water-Proof Light
Maximum 1,300 / 1,100 lumen and 2 power settings. An optically designed dome lens delivers extra wide 100 degree coverage underwater. Handy water-proof LED flashlight for wide imaging. On-board Shutter-linked AUTO OFF function is ideal as a focus light.
On-board Sutter-linked AUTO OFF function to benefit to use as a focus light for still images. Flashing detected by a sensor located on the light emitting surface will instantly cease illuminating then back on automatically to prevent exposure of the light on an image. Black out period is only 0.2 seconds. Another flash detection during black out time will extend it about 0.2 seconds.
This Sutter-linked AUTO OFF function can be controlled by the "Selector Ring LF" (red circular switch) on the light head to activate/deactivate the function where you can deactivate it to use as a video light not to have intermittent illumination by neighbors' flashing.

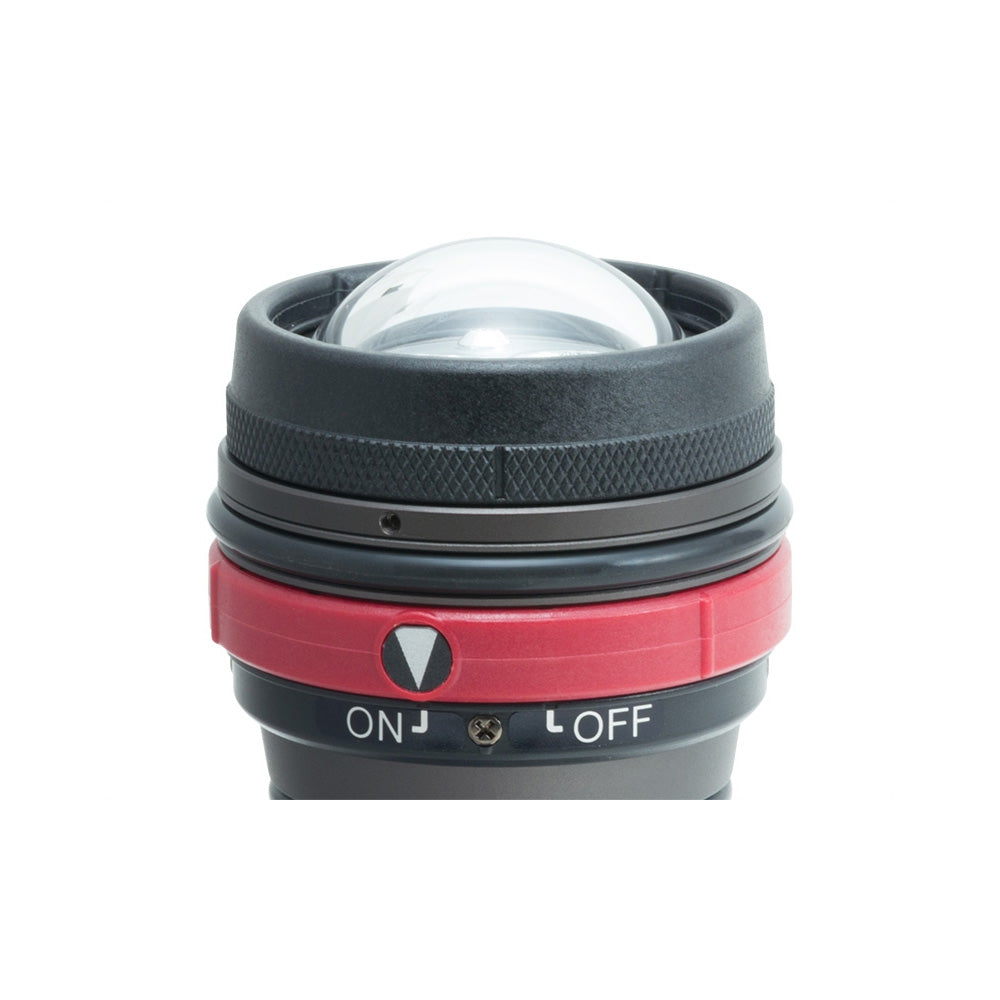

Underwater coverage is super wide 100 degree thanks to the optically designed dome lens which effectively widen LED beam without sacrificing native brightness from LED modules. Using optical dome lens provides ideal light distribution for video shooters with its seamless gradation and less spotting on the center.

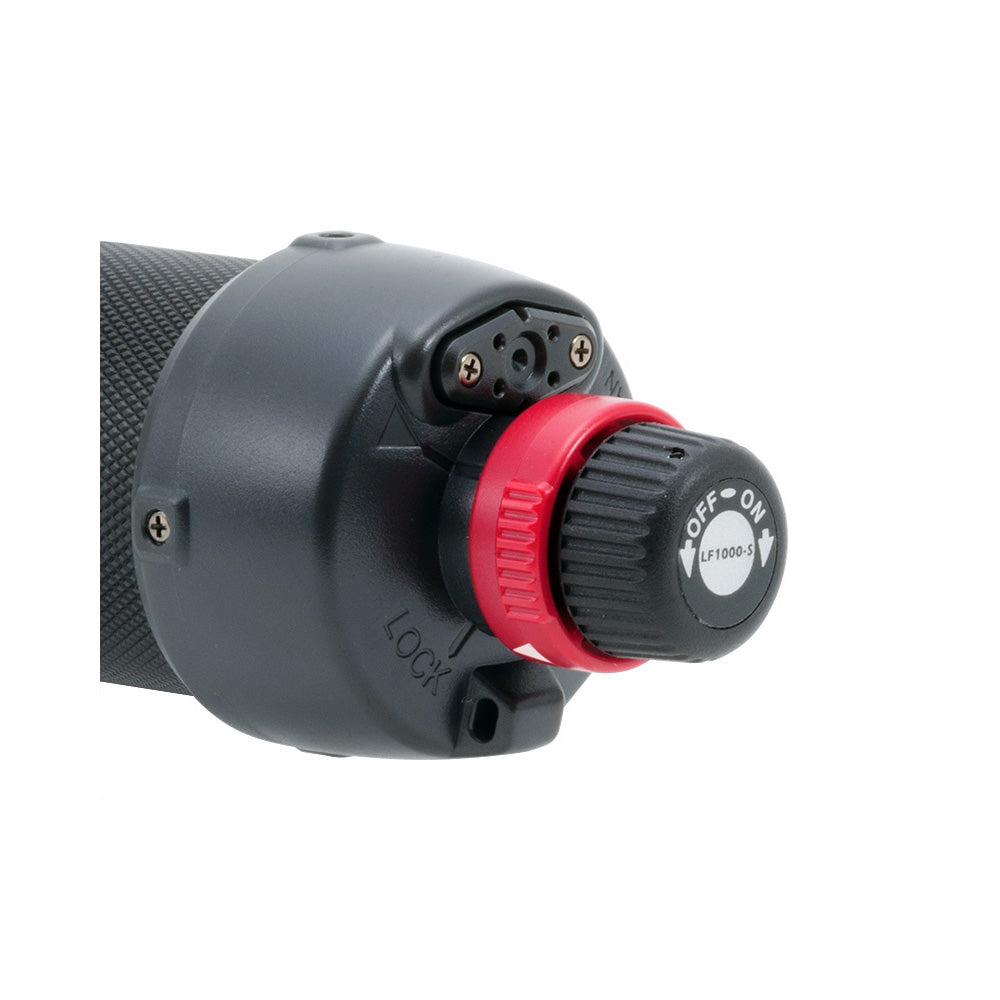

Simple yet durable rotary switch provides two power settings for various scenes; FULL with maximum intensity 1,300 / 1,100 lumen or LOW with 350 / 330 lumen for longer burn time and usable on land as well. The rotary switch is equipped with Lock Ring to prevent accidental operation when the product is not in use.(*)
* Only LOW mode is usable on land. FULL mode is not usable on land except for brief function check.

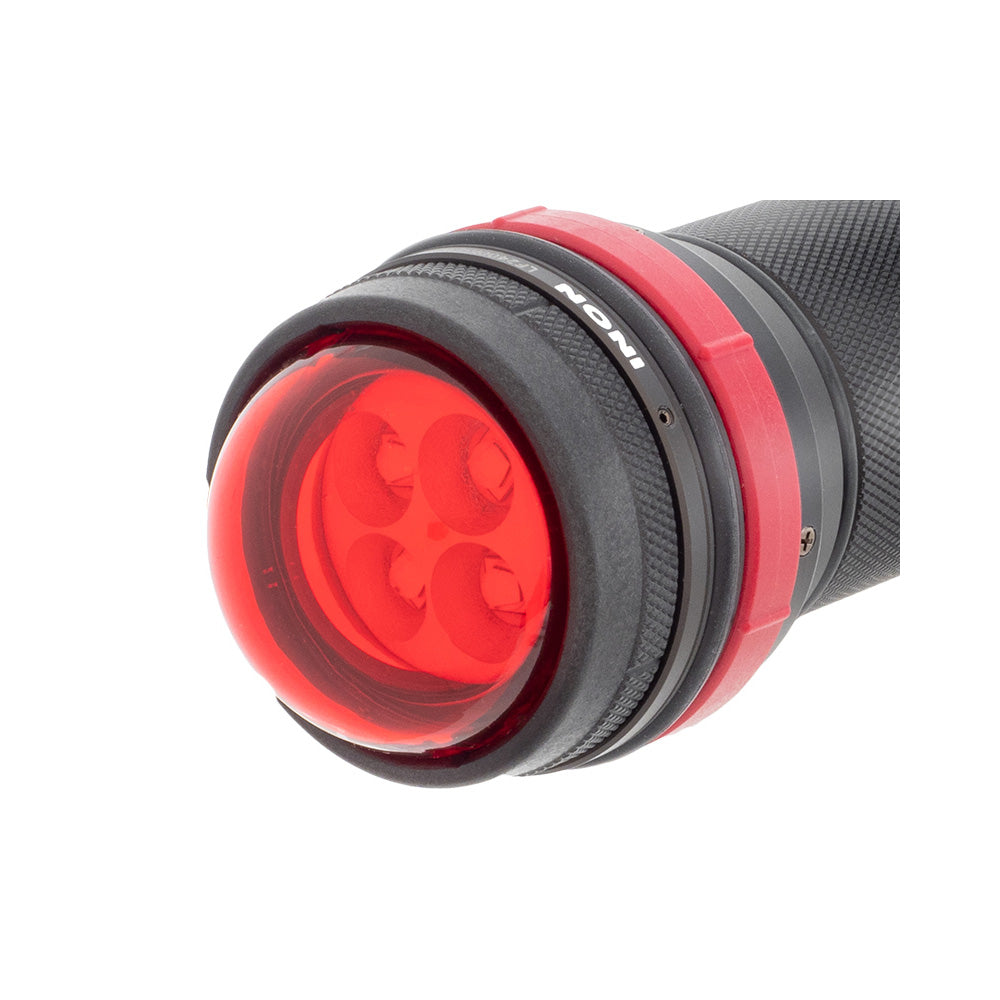

Dome Red Filter LF-W is packaged to change color tone not to stimulate shy marine lives.
Operated by easily obtainable 3 x AA batteries. Using compatible rechargeable batteries like "eneloop" or "eneloop pro" enables you to share same battery charger with an INON strobe to enhance mobility and minimize your luggage space. The rated practical burn time with "eneloop pro" (BK-3HCD) rechargeable batteries, is approx. 45 minutes at FULL mode or approx. 220 minutes (3hrs 40 min) at LOW mode.
* Average time to get half brightness comparing to initial performance when using "eneloop pro" batteries (Model code: BK-3HCD).

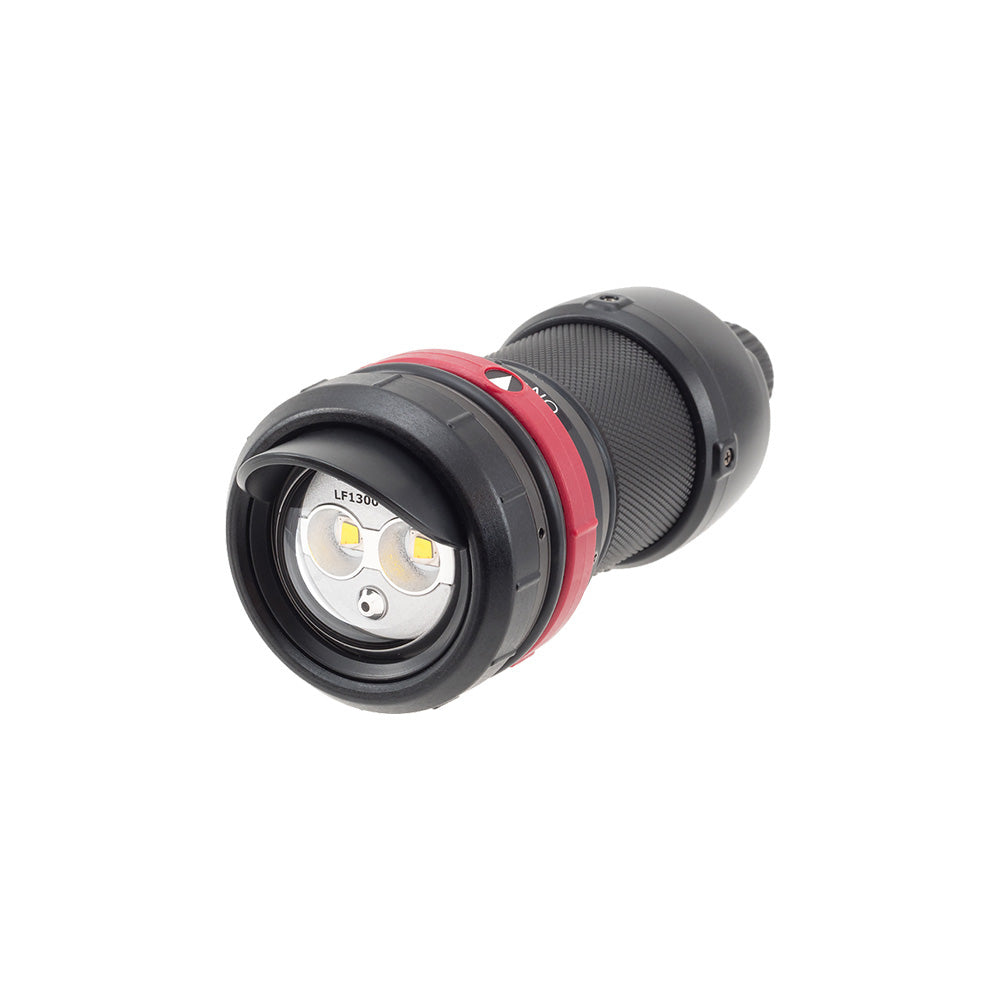

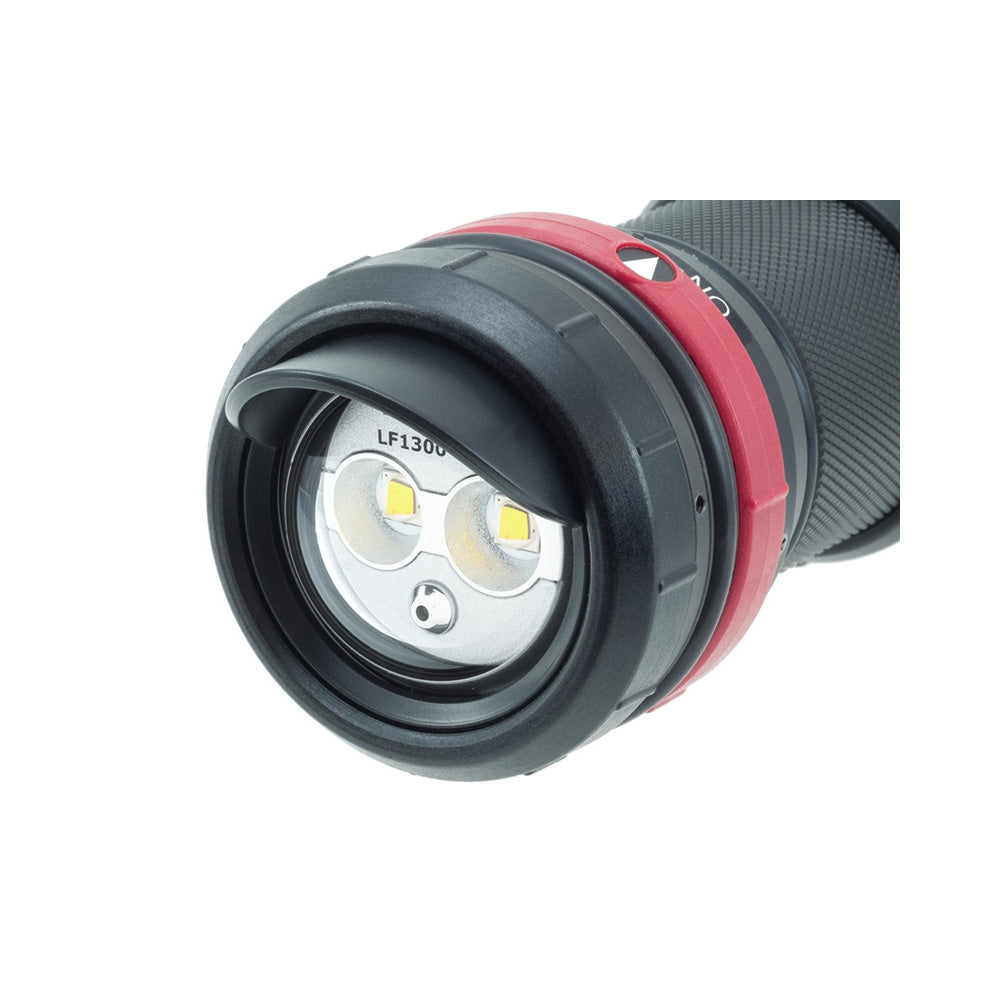

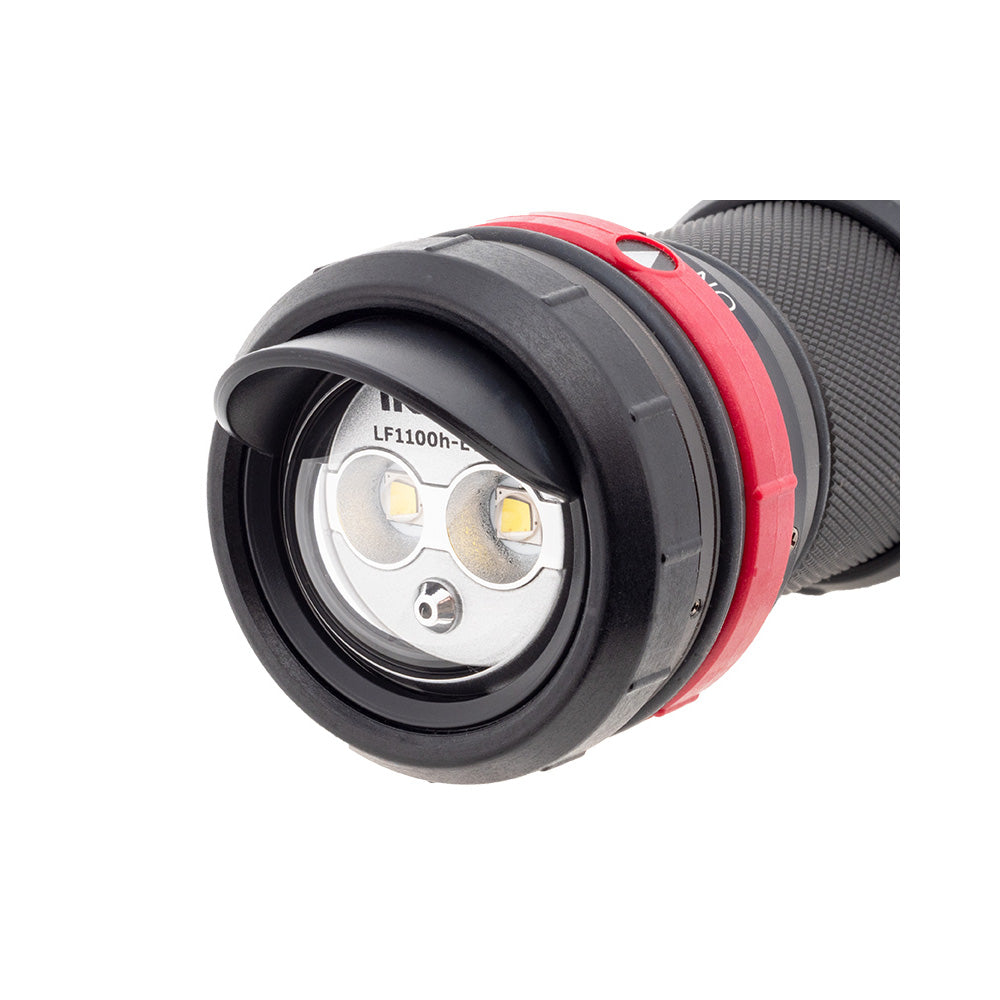

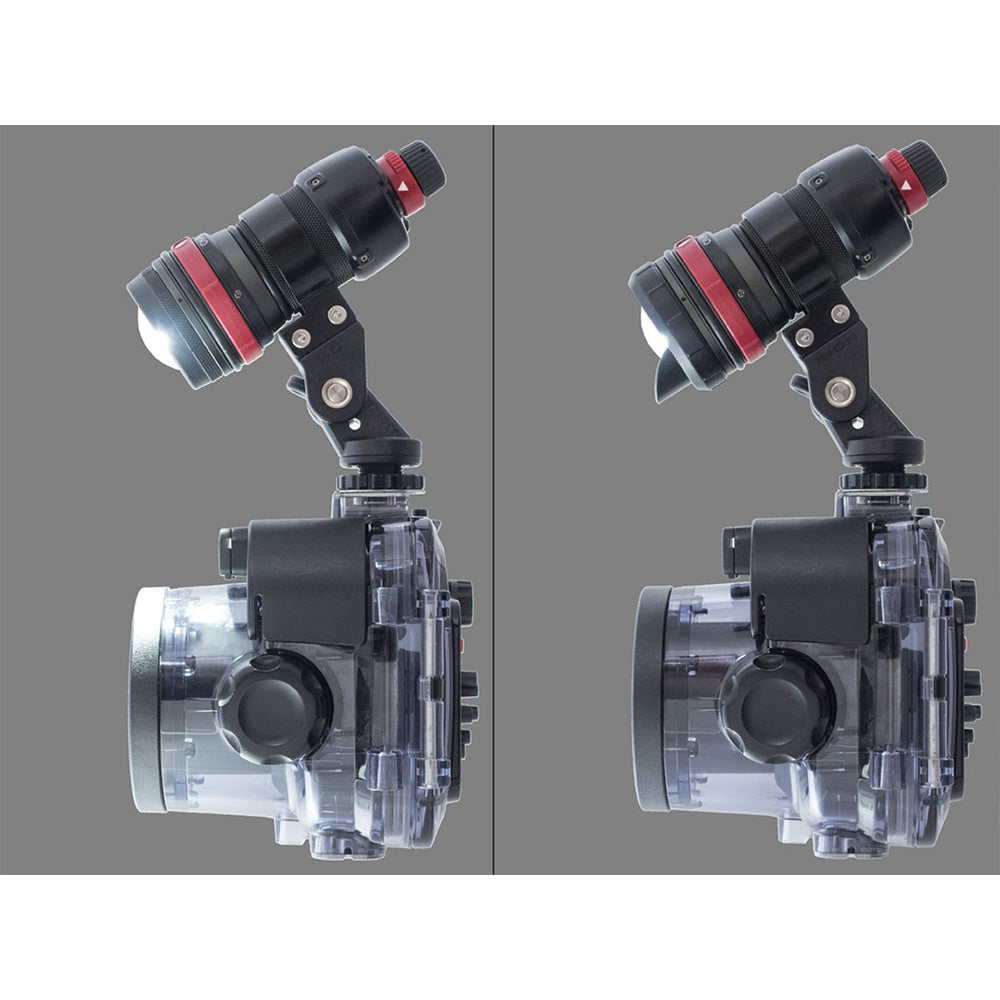

The bundled "Light Shade LF-EW" is attached in front of the light head and equipped with a partial rotatable shade to cut a part of the light to suppress flare/ghost created when the light directly illuminates camera lens or its vicinity.
The light head and battery box is made from seawater-resistant aluminum alloy. Simple yet durable construction with double O-ring for moving parts supports depth rating 120m. The independent rotary switch part is equipped with a stopper to prevent accidental flooding due to over loosening.
Gold coating on electrical contacts of the light head and battery box provides maintenance free circumstances under normal usage.

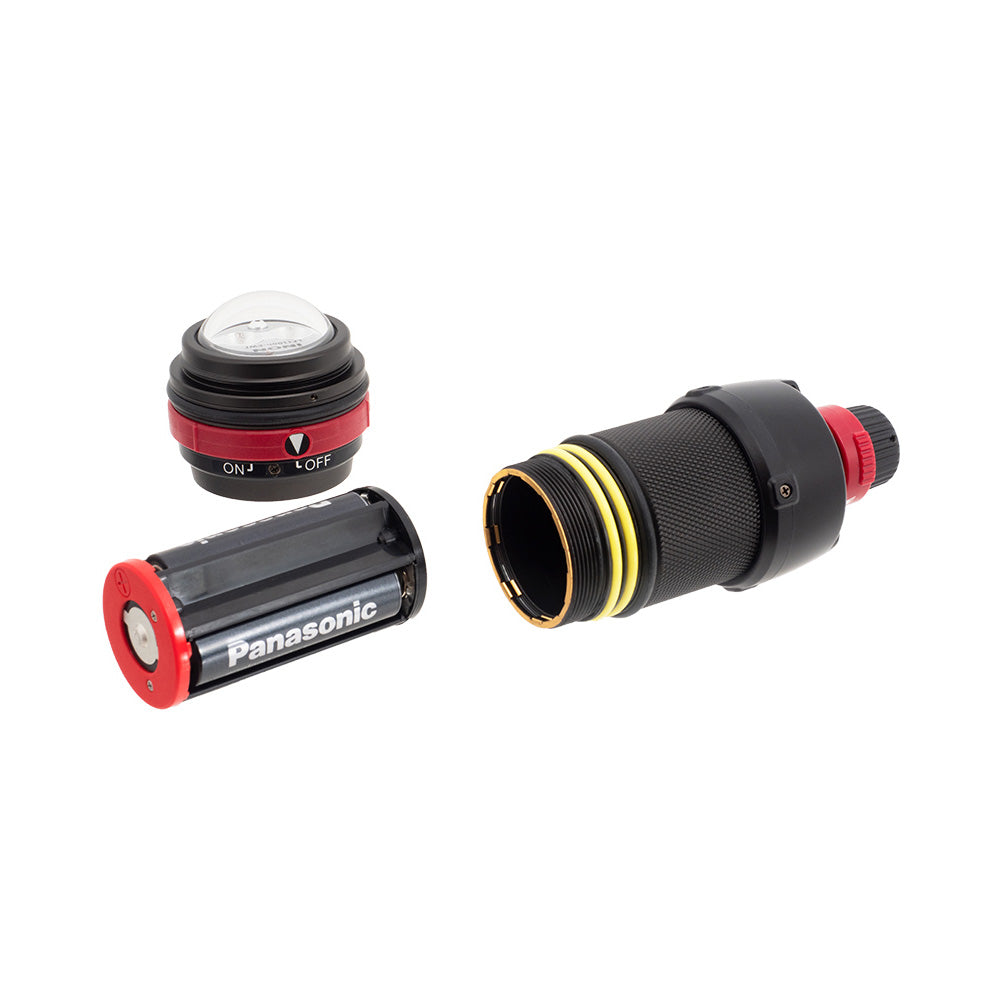

Interchangeable Light Head design enables you to use "LF800-N", "LF1100-W", "LF1000-S" Light Head benefitting for various applications and supports possible upgrade to future model as well.
LED
|
High-intensity power LED (Cree XM-L2“T6”)
|
Max. Luminous Flux
(*2)(*3) |
FULL mode: approx. 1,100 lumen [“eneloop pro” battery]
|
LOW mode: approx. 330 lumen [“eneloop pro” battery]
|
|
Beam Angle(underwater)
|
approx. 100° [without a filter and with packaged Red Filter LF-EW]
|
Color Temp.(*3)
|
approx. 6500K
|
Shutter Linked AUTO-OFF
|
ON/OFF : Automatically shut off and back on after 0.2 seconds.
(Another strobe light detection during AUTO-OFF will add extra 0.2 seconds shut OFF time) |
Run Time[air]
(*4)(*6) |
approx. 160 minutes [“eneloop” battery at LOW]
|
approx. 210 minutes [“eneloop pro” battery at LOW]
|
|
approx. 90 minutes [Alkaline battery at LOW]
|
|
Run Time[Underwater]
(*5)(*6) |
approx. 35 minutes [“eneloop” battery at FULL]
|
approx. 165 minutes [“eneloop” battery at LOW]
|
|
approx. 45 minutes [“eneloop pro” battery at FULL]
|
|
approx. 220 minutes [“eneloop pro” battery at LOW]
|
|
approx. 20 minutes [Alkaline battery at FULL]
|
|
approx. 85 minutes [Alkaline battery at LOW]
|
|
Compatible
Battery |
AA “eneloop” / “eneloop pro” battery x 3 (*7)
|
AA NiMH [good quality] x 3 (*8)
|
|
AA Alkaline battery x 3
|
|
Depth Rating
|
120m / 394’(*9)
|
Size
|
Max. diameter 52.1mm/2.1” x 128.8mm/5.1”
|
Weight (*10)
|
Air: 268g/9.5oz, Underwater: approx. 109g/3.8oz
|
Working/Storage Temperature
|
0℃-30℃ / 32°F-86°F
|
Usable Circumstance
|
FULL : Underwater only
|
LOW: Land/underwater
|
|
LED life time
|
approx. 10,000 hours
|
Material/Finishing
|
Corrosion resistant aluminum alloy/rigid almite, ABS, PC, PMMA etc.
|
Standard accessory
|
Dome Red Filter LF-EW,
|
Light Shade LF-EW,
|
|
Hand strap,
|
|
INON grease
|
|
EMC standards
|
EN 55015:2013, EN 61547:2009,
|
CRF 47 FCC Part 15 Subpart A and B ,
|
|
ICES-003:2016(Issue 6, Amendment 1)
|
*1)
|
As of May, 2019. Subject to change without prior notice.
|
||||||||||||||||||||
*2)
|
Nominal value calculated from LED manufacture specification sheet.
|
||||||||||||||||||||
*3)
|
Due to individual variability of LED, drive circuit or battery etc., luminous flux, color temperature or intensity may vary within rated specification.
|
||||||||||||||||||||
*4)
|
Average time to get half brightness when continuously turn ON the product with below listed batteries on land (approx. 20℃/68°F).
|
||||||||||||||||||||
*5)
|
Average time to get half brightness when continuously turn ON the product with below listed batteries underwater (approx. 25℃/77°F).
|
||||||||||||||||||||
*6)
|
Actual measured data by INON. The value may vary depending on product individual variability, battery manufacture/model, test condition.
|
||||||||||||||||||||
*7)
|
"New generation" NiMH batteries carrying less self-discharging and heat generating characteristic comparing to "conventional" or "high-capacity" NiMH including batteries listed below have been confirmed compatible by INON INC. as same as recommended Panasonic "eneloop"/"eneloop pro" battery (BK-3MCC, BK-3HCD).
|
||||||||||||||||||||
*8)
|
Some “conventional” or “high-capacity” NiMH rechargeable batteries have significant self-discharge and heat-generating characteristic resulting difficulty to keep their performance during usage. We recommend using recommended batteries.
|
||||||||||||||||||||
*9)
|
Without operating the “switch”. INON has confirmed depth rating 70m/230’ including switch operation.
|
||||||||||||||||||||
*10)
|
Including 3 x AA “eneloop” batteries.
|
- LED Flashlight
- Light Shade LF-EW
- Dome Red Filter LF-EW
- Hand strap
- INON grease
