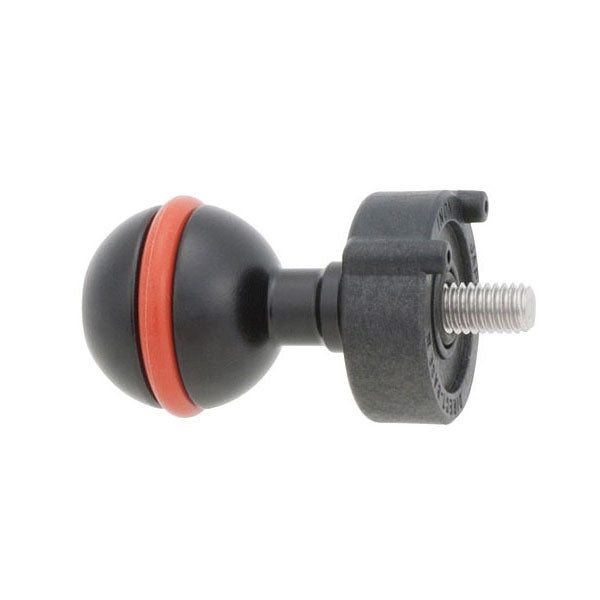

INON Direct Base III

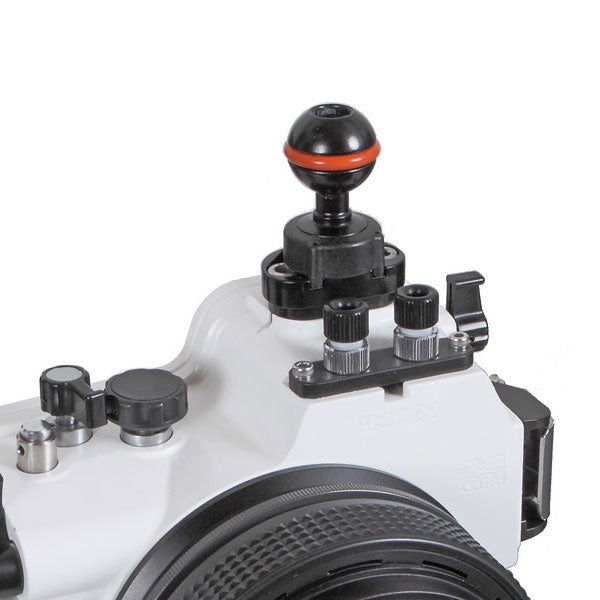

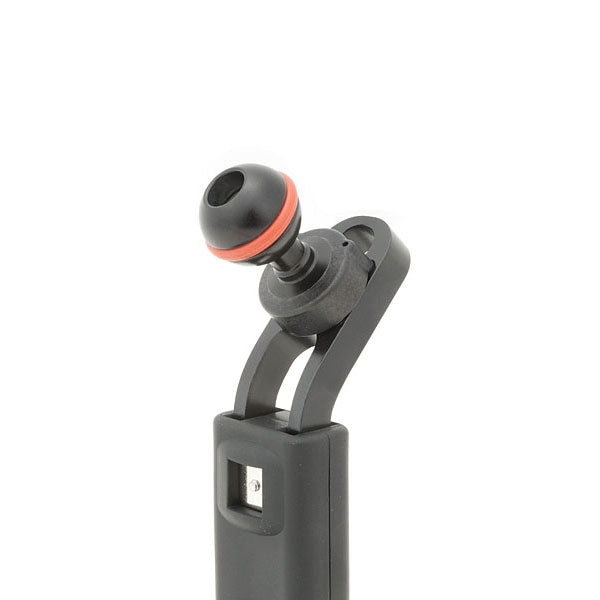

The Direct Base III is a fundamental part to attach arm system. Directly attached on the Grip Base D4 / Grip Base M1 / D Holder / SD Front Mask for HERO5/6/7 / Weight Plate or via optional M6 Plate Direct Base III or M5 Plate Direct Base III on a housing or other base products. It is also possible to attach the Direct Base III on the middle of the Stick Arm or Multi Ball Arm via optional M6 Joint. The Direct Base III is attached on a strobe as well. Its ball-joint is made of metal, to provide rigid strobe positioning only by lightly fasten the Clamp III.

Compatible base/housing etc.
Directly attached
Grip Base D4, Grip Base M1, D Holder, D Holder Extension Bar,
Port Arm for MRS, Port Arm for UFL-MR130 EFS60, Tripod Adapter,
SD Front Mask for HERO5/6/7, SD Front Mask STD,
SD Mount Cage for HERO3/3+/4,
SD Mount Base for TG-Tracker, SD Mount Base UWH1,
Weight Plate (Screw Type), Weight Plate (Velcro Type)

Attached via optional M6 Plate Direct Base III
X-2 series Housing, X1-Z/LZ/NZ Housing
Holder II, Grip+Bar III Set, Holder II Grip Set, Holder Base, Grip+Bar I Set, Grip+Bar II Set,
Grip Base DIII w/ Rubber Grip D, Grip Base DII w/ Rubber Grip D, Other brands' housing/arm system (*1)
(*1) Compatible with 2 x M6 screw holes with 8mm or more depth and 13mm - 28mm center-to-center distance of screw holes.

Attached via optional M5 Plate Direct Base III
Other brands' housing/arm system (*2)
(*2) Compatible with 2 x M5 screw holes with 6mm or more depth and 24mm - 28mm center-to-center distance of screw holes.

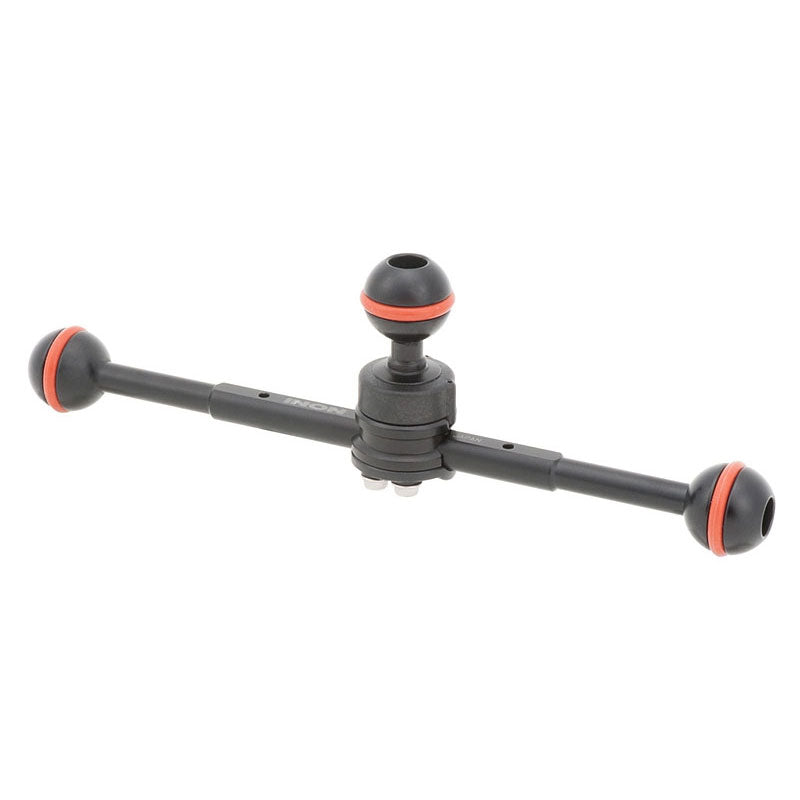

Compatible arm Attached via optional M6 Joint
Stick Arm XS-T/SS-T/S-T/M-T/L
Multi Ball Arm S/ML/L/LL/XL (Multi Ball Arm SS is not compatible)

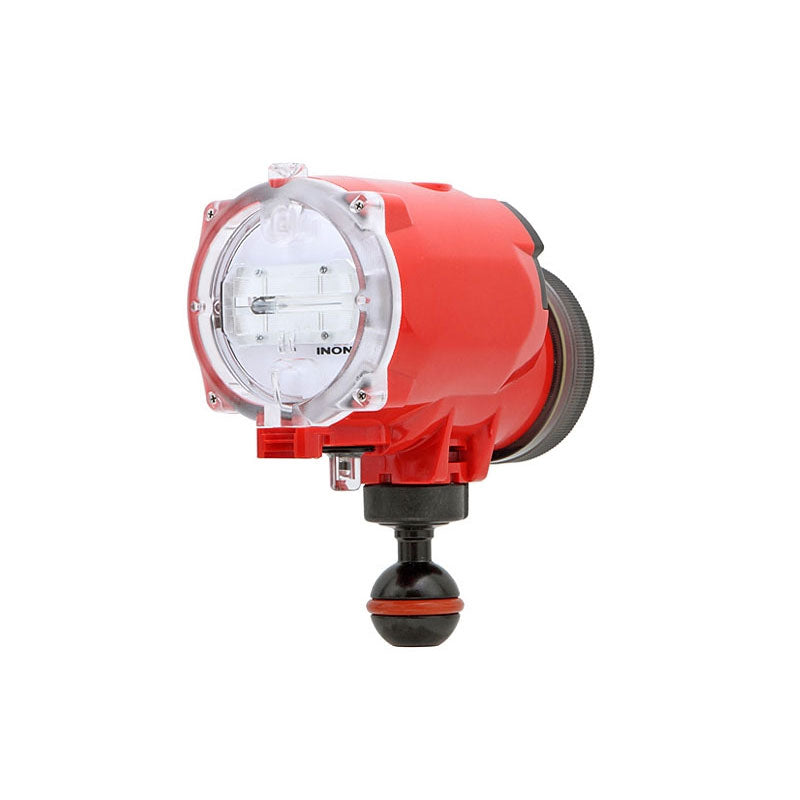

Compatible strobe etc.
Z-330, D-200, S-2000, Z-240, D-2000, D-2000S, D-2000W/Wn, D-180, D-180S, Z-220, Z-220F, Z-220S
